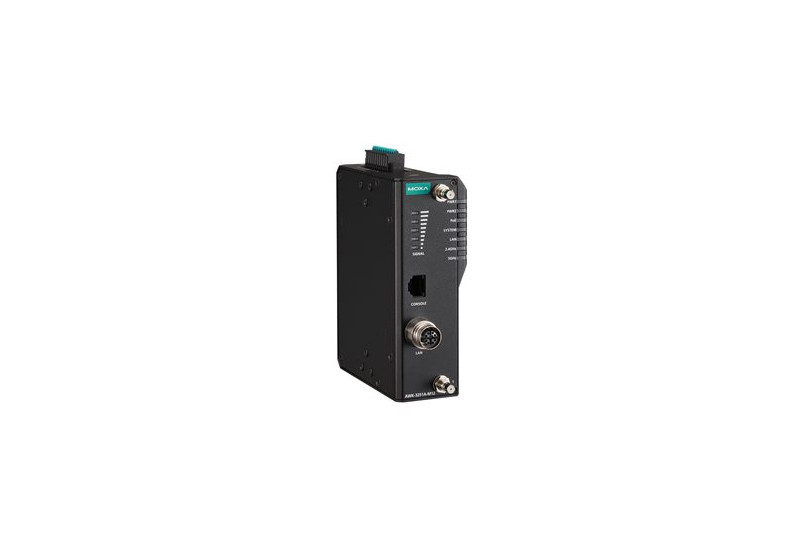

AWK-3251A-M12-RCC-US

Ficha de datos

Input/Output Interface: Buttons

Reset button

Input/Output Interface: Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Input/Output Interface: Digital Inputs

2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0

Ethernet Interface: 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

1 Supports IEEE 802.3at PoE

Ethernet Interface: Standards

IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3at for PoE IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication

Ethernet Software Features: Management

DHCP Server/Client DNS HTTP IPv4 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN MXconfig

Ethernet Software Features: Time Management

SNTP Client

Ethernet Software Features: Security

HTTPS/SSL RADIUS SSH

Serial Interface: Console Port

RS-232 8-pin RJ45

LED Interface: LED Indicators

PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG

Firewall: Filter

ICMP MAC address IP protocol Port-based

Power Parameters: Input Voltage

12 to 48 VDC Redundant dual inputs 48 VDC Power-over-Ethernet

Power Parameters: Input Current

12-48 VDC, 2.01-0.5 A

Power Parameters: Power Connector

1 removable 10-contact terminal block(s)

Power Parameters: Power Consumption

24.12 W (max.)

Physical Characteristics: Housing

Metal

Physical Characteristics: IP Rating

IP30

Physical Characteristics: Dimensions

45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)

Physical Characteristics: Weight

800 g (1.76 lb)

Physical Characteristics: Installation

DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits: Operating Temperature

-25 to 60°C (-13 to 140°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMC

EN 55032/35

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 30 A/m

Standards and Certifications: Safety

IEC 60950-1 IEC 62368-1 UL 62368-1

Standards and Certifications: Railway

EN 50121-4 EN 50155

Standards and Certifications: Radio

EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC

MTBF: Time

838,684 hrs

MTBF: Standards

Telcordia SR332

Warranty: Warranty Period

5 years

WLAN Interface: WLAN Standards

2.4 GHz: 802.11b/g/n with 256 QAM support 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support

WLAN Interface: Frequency Band for US (20 MHz operating channels)

2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels)

WLAN Interface: Wireless Security

WEP encryption (64-bit and 128-bit) WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal

WLAN Interface: Transmission Rate

2.4 GHz: 802.11b: 1 to 11 Mbps 802.11g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps 802.11ac: 6.5 to 400 Mbps 5 GHz: 802.11a: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps 802.11ac: 6.5 to 867 Mbps

WLAN Interface: Transmitter Power for 802.11a

22±1.5 dBm @ 6 Mbps 22±1.5 dBm @ 9 Mbps 22±1.5 dBm @ 12 Mbps 20.5±1.5 dBm @ 18 Mbps 20.5±1.5 dBm @ 24 Mbps 20.5±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 20±1.5 dBm @ 54 Mbps

WLAN Interface: Transmitter Power for 802.11n (5 GHz)

19–22 ±1.5 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Transmitter Power for 802.11ac (5 GHz, Dual Chain)

17–21.5 ±1.5 dBm según MCS y ancho de canal (20/40/80 MHz)

WLAN Interface: Transmitter Power for 802.11b

25.5±1.5 dBm @ 1 Mbps 25.5±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 26±1.5 dBm @ 11 Mbps

WLAN Interface: Transmitter Power for 802.11g

26±1.5 dBm @ 6 Mbps 26±1.5 dBm @ 9 Mbps 26±1.5 dBm @ 12 Mbps 25±1.5 dBm @ 18 Mbps 25±1.5 dBm @ 24 Mbps 24.5±1.5 dBm @ 36 Mbps 23.5±1.5 dBm @ 48 Mbps 23±1.5 dBm @ 54 Mbps

WLAN Interface: Transmitter Power for 802.11n (2.4 GHz)

21.5–24.5 ±1.5 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

21–25 ±1.5 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

Typ. -88 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -85 @ 12 Mbps Typ. -84 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -77 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -72 @ 54 Mbps

WLAN Interface: Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

Typ. -89 a -66 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Receiver Sensitivity for 802.11ac (5 GHz, Dual Chain)

Typ. -89 a -60 dBm según MCS y ancho de canal (20/40/80 MHz)

WLAN Interface: Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

Typ. -96 dBm @ 1 Mbps Typ. -92 dBm @ 2 Mbps Typ. -91 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps

WLAN Interface: Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

Typ. -90 dBm @ 6 Mbps Typ. -89 dBm @ 9 Mbps Typ. -88 dBm @ 12 Mbps Typ. -86 dBm @ 18 Mbps Typ. -82 dBm @ 24 Mbps Typ. -79 dBm @ 36 Mbps Typ. -75 dBm @ 48 Mbps Typ. -73 dBm @ 54 Mbps

WLAN Interface: Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

Typ. -91 a -68 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Receiver Sensitivity for 802.11ac (2.4 GHz, Dual Chain)

Typ. -90 a -64 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: WLAN Operation Mode

Access point Client Client-Router Master Slave Sniffer ACC

WLAN Interface: Antenna Connectors

QMA
