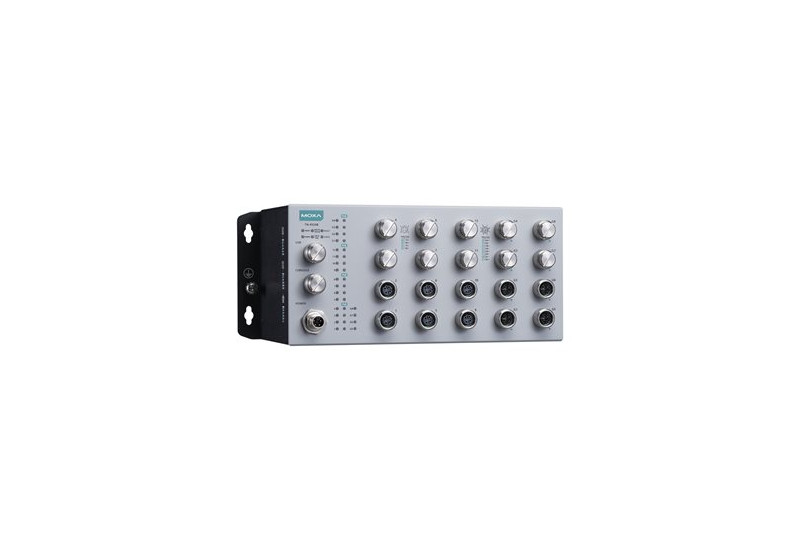

TN-4520B-12P-4GP-4GBP-CT-T

Ficha de datos

Ethernet Interface: 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

4

Ethernet Interface: PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

12

Ethernet Interface: PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

4

Ethernet Interface: Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af/at, IEEE 802.1D-2004, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x

Ethernet Software Features: Configuration Options

Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility

Ethernet Software Features: Management

IPv4/IPv6, DHCP, QoS, LLDP, SNMPv1/v2c/v3, RMON, HTTP/HTTPS, Syslog, Loop Protection

Ethernet Software Features: MIB

P-BRIDGE MIB Q-BRIDGE MIB Ethernet-like MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9

Ethernet Software Features: Time Management

SNTP Server/Client NTP Server/Client

Ethernet Software Features: Security

Rate Limit Trust access control Port Lock Sticky MAC HTTPS/SSL SSH RADIUS TACACS+ Access control list Login and password policy DHCP Snooping

Ethernet Software Features: Filter

GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier Static Multicast

Ethernet Software Features: Redundancy Protocols

STP RSTP MSTP Turbo Ring v2 Link Aggregation Ring Coupling Static Port Trunk LACP MRP

Serial Interface: Console Port

M12 B-coded 5-pin female connector (RS-232)

LED Interface: LED Indicators

PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

Power Parameters: Input Voltage

24/36/48/72/96/110 VDC Redundant dual inputs No. of power inputs: 2

Power Parameters: Input Current

9.3 A @ 24 VDC

Power Parameters: Power Connector

M12 K-coded 5-pin male connector

Power Parameters: Reverse Polarity Protection

Supported

Power Parameters: Power Consumption

With PoE disabled: 25.6 W @ 24 VDC 25.9 W @ 110 VDC With PoE enabled: 56.3 W @ 24 VDC 36.8 W @ 110 VDC

Power Parameters: Operating Voltage

16.8 to 137.5 VDC

Power Parameters: Overload Current Protection

Supported

Power Parameters: Total PoE Power Budget

150 W

Physical Characteristics: Housing

Metal

Physical Characteristics: IP Rating

IP42

Physical Characteristics: Dimensions

280 x 115 x 133 mm (11.02 x 4.53 x 5.24 in)

Physical Characteristics: Weight

2,419 g (5.33 lb)

Physical Characteristics: Installation

Wall mounting

Physical Characteristics: Protection

PCB conformal coating

Environmental Limits: Operating Temperature

-40 to 70°C (-40 to 158°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Environmental Limits: Altitude

3000 m

Standards and Certifications: EMC

EN 55032/35

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

UL 62368-1 IEC 62368-1 EN 62368-1 BSMI

Standards and Certifications: Railway

IEC 60068-2-1, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78 EN 50121-4 EN 50155 IEC 60571

Standards and Certifications: Shock

IEC 60068-2-64, IEC 61373, EN 50155

Standards and Certifications: Vibration

IEC 60068-2-64, IEC 61373, EN 50155

Standards and Certifications: Railway Fire Protection

EN 45545-2

Standards and Certifications: Radio Frequency

FCC

Standards and Certifications: Salt Spray Test

EN 50155

Standards and Certifications: Package Vibration Test

ISTA 1A

Standards and Certifications: Package Drop Test

ISTA 1A

MTBF: Time

824,348 hrs

MTBF: Standards

Telcordia SR332 Issue 4

Warranty: Warranty Period

5 years

Switch Properties: MAC Table Size

16 K

Switch Properties: IGMP Groups

1024

Switch Properties: Max. No. of VLANs

256

Switch Properties: VLAN ID Range

VID 1 to 4094

Switch Properties: Priority Queues

8

USB Interface: M12 Connector

M12 A-coded 5-pin female (for ABC-02 USB storage)

Declaration: Green Product

RoHS, CRoHS, WEEE
