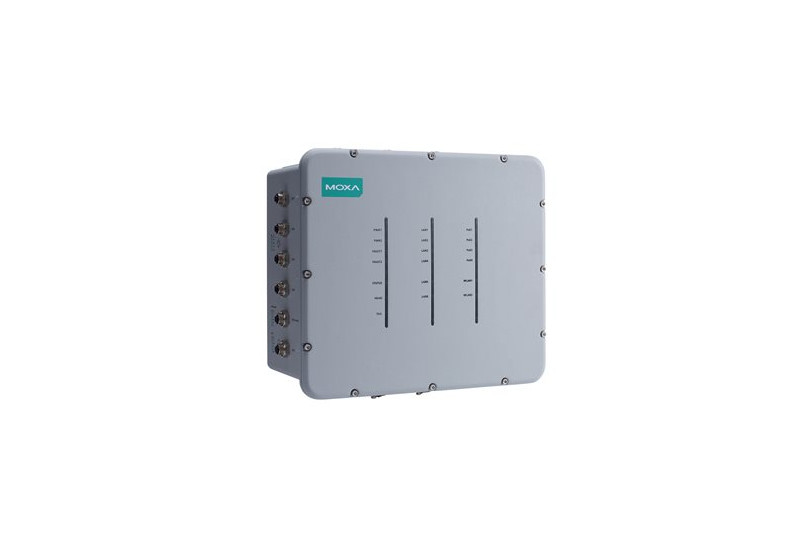

TAP-323-JP-CT-T

Ficha de datos

Ethernet Interface: 1000BaseSFP Slots

2

Ethernet Interface: 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

4

Ethernet Interface: Highest Speed

1G

Ethernet Interface: Total Port Count

6

Ethernet Interface: Connections

PoE M12 Fiber

Ethernet Interface: Standards

IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3u for 100BaseT(X)

Ethernet Software Features: Management

SNMPv1/v2c/v3, DHCP Server/Client, IPv4, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility

Ethernet Software Features: Time Management

SNTP

Ethernet Software Features: Security

HTTPS/SSL, RADIUS, SSH

Serial Interface: Parity

None, Even, Odd, Space, Mark

Serial Interface: Console Port

USB-M12 console (M12 B-coded 5-pin female connector)

NAT: Features

Port forwarding

Firewall: Filter

IP address, MAC address, Ports

Power Parameters: Input Voltage

Redundant dual inputs, 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)

Power Parameters: Input Current

AC input: 110 to 220 VAC, 50 to 60 Hz, 1.1 A (max.) DC input: 110 to 220 VDC, 1.1 A (max.)

Power Parameters: Power Connector

6-pin M23 Connector

Power Parameters: Reverse Polarity Protection

Supported

Power Parameters: Source of Input Power

PoE (IEEE 802.3af)

Power Parameters: Power Consumption

85 W (max.)

Physical Characteristics: Housing

Metal

Physical Characteristics: IP Rating

IP68

Physical Characteristics: Dimensions

324 x 279 x 156 mm (12.76 x 10.98 x 6.142 in)

Physical Characteristics: Weight

10,000 g (22.22 lb)

Physical Characteristics: Installation

Wall mounting (standard), DIN-rail mounting (optional)

Physical Characteristics: Protection

PCB conformal coating

Environmental Limits: Operating Temperature

-40 to 75°C (-40 to 167°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMC

EN 61000-6-2/-6-4, EN 55032/24

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

EN 60950-1, UL 60950-1, IEC 60950-1

Standards and Certifications: Railway

EN 50121-4, EN 50155

Standards and Certifications: Railway Fire Protection

EN 45545-2

Standards and Certifications: Radio

MIC

Standards and Certifications: Radio Frequency

FCC, IC, WPC, RED

MTBF: Time

290,937 hrs

MTBF: Standards

Telcordia SR332

Warranty: Warranty Period

5 years

WLAN Interface: WLAN Standards

802.11a/b/g/n 802.11i Wireless Security

WLAN Interface: Frequency Band

5 GHz 2.4 GHz

WLAN Interface: Frequency Band for EU (20 MHz operating channels)

2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels)

WLAN Interface: Frequency Band for US (20 MHz operating channels)

2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (8 channels) Excludes 5.600 to 5.640 5.745 to 5.825 GHz (5 channels)

WLAN Interface: Frequency Band for JP (20 MHz operating channels)

2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels)

WLAN Interface: Wireless Security

WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal

WLAN Interface: Transmission Rate

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)

WLAN Interface: Transmitter Power for 802.11a

23±1.5 dBm @ 6 Mbps 23±1.5 dBm @ 12 Mbps 23±1.5 dBm @ 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps

WLAN Interface: Transmitter Power for 802.11n (5 GHz)

18–23 ±1.5 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Transmitter Power for 802.11b

26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps

WLAN Interface: Transmitter Power for 802.11g

23±1.5 dBm @ 6 Mbps 23±1.5 dBm @ 12 Mbps 23±1.5 dBm @ 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps

WLAN Interface: Transmitter Power for 802.11n (2.4 GHz)

17–23 ±1.5 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -74 @ 54 Mbps

WLAN Interface: Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

Typ. -95 a -63 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps

WLAN Interface: Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps

WLAN Interface: Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

Typ. -95 a -67 dBm según MCS y ancho de canal (20/40 MHz)

WLAN Interface: WLAN Operation Mode

Access point

WLAN Interface: Modulation Type

DSSS OFDM

WLAN Interface: Antenna Connectors

5 N-type female

WLAN Interface: Channel Bandwidth

20 MHz, 40 MHz

Switch Properties: VLAN ID Range

VID 1 to 4094

USB Interface: M12 Connector

M12 A-coded 5-pin female (for ABC-02 USB storage)

Overload Protection: Protection Type

Current
