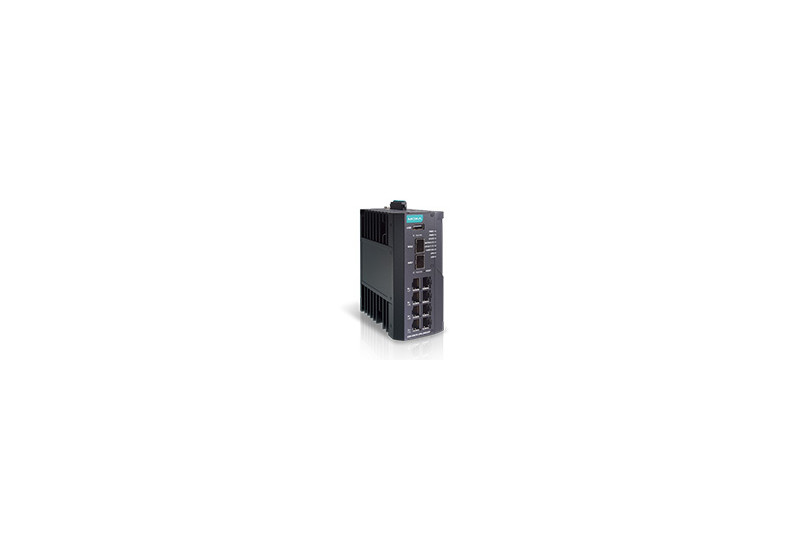

EDR-G9010-VPN-2MGSFP-CT-T

Ficha de datos

Input/Output Interface: Buttons

Reset button

Input/Output Interface: Digital Input Channels

+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Input/Output Interface: Alarm Contact Channels

Resistive load: 1 A @ 24 VDC

Ethernet Interface: 10/100/1000BaseT(X) Ports (RJ45 connector)

8

Ethernet Interface: 1000/2500BaseSFP Ports

2

Ethernet Interface: DMZ

User-configurable DMZ ports

Ethernet Interface: Standards

IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) Static Port Trunk IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.1X for authentication

Ethernet Software Features: Unicast Routing

OSPF RIPV1/V2 Static Route

Ethernet Software Features: Management

Back Pressure Flow Control DDNS DHCP Server/Client Web Console (HTTP/HTTPS) LLDP QoS/CoS/ToS SNMPv1/v2c/v3 Telnet TFTP HTTPS SSH

Ethernet Software Features: Time Management

NTP Server/Client SNTP

Ethernet Software Features: Routing Table

Max. 4K routing rules

Ethernet Software Features: Security

Secure Boot IPsec L2TP (server) RADIUS Trust access control TACACS+ SCP SFTP NTP authentication Syslog Authentication

Ethernet Software Features: Concurrent Connections

Max. 400K (based on RFC 3511)

Ethernet Software Features: Connections Per Second

Routing Redundancy

Ethernet Software Features: Filter

IGMP v1/v2/v3

Ethernet Software Features: Redundancy Protocols

RSTP STP Turbo Ring v2 Turbo Chain

Ethernet Software Features: Routing Throughput

Max. 350K packets per second / 2 Gbps (based on RFC 2544)

Ethernet Software Features: Multicast Routing

Static Route

Ethernet Sodtware Features: Broadcast Forwarding

IP directed broadcast, broadcast forwarding

Serial Interface: Connector

USB Type-C

Serial Interface: Console Port

RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

LED Interface: LED Indicators

PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB

NAT: Features

1-to-1 N-to-1 NAT loopback Port forwarding

DoS and DDoS Protection: Technology

ARP-Flood FIN Scan ICMP Flood TCP Sessions Without SYN NMAP-ID Scan NMAP-Xmas Scan Null Scan SYN/FIN Scan SYN/RST Scan SYN-Flood Xmas Scan

Firewall: Throughput

Firewall: Max. 350K packets per second / 2 Gbps (based on RFC 2544) IPS: Max. 200K packets per second / 2 Gbps (based on RFC 2544)

Firewall: Deep Packet Inspection

DNP3 EtherNet/IP IEC 60870-5-104 IEC 61850 MMS MELSEC Modbus TCP Modbus UDP Omron FINS OPC UA Siemens S7 Comm. Siemens S7 Comm. Plus Additional protocols will be supported through future firmware updates.

Firewall: Filter

DDoS Ethernet protocols ICMP IP address MAC address Ports

Firewall: Stateful Inspection

Router firewall Transparent (bridge) firewall

Firewall: Intrusion Prevention System

Requires an additional license.

Real-Time Firewall / VPN Event Log: Event Type

Firewall event VPN event

Real-Time Firewall / VPN Event Log: Media

Local storage SNMP Trap Syslog server

Power Parameters: Connection

Removable terminal block

Power Parameters: Input Voltage

Redundant dual inputs 12/24/48 VDC (DNV-certified for 24 VDC)

Power Parameters: Input Current

0.70 A @ 24 VDC 0.35 A @ 48 VDC 1.51 A @ 12 VDC

Power Parameters: Reverse Polarity Protection

Supported

Power Parameters: Operating Voltage

9.6 to 60 VDC

Physical Characteristics: Housing

Metal

Physical Characteristics: IP Rating

IP40

Physical Characteristics: Dimensions

58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)

Physical Characteristics: Weight

1030 g (2.27 lb)

Physical Characteristics: Installation

DIN-rail mounting (DNV-certified) Wall mounting (with optional kit)

Physical Characteristics: Protection

PCB conformal coating

Environmental Limits: Operating Temperature

DNV-certified for -25 to 70°C (-13 to 158°F) -40 to 75°C (-40 to 167°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMC

EN 55032/35

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

IEC 62368-1 UL 62368-1 IEC 60950-1 UL 60950-1

Standards and Certifications: Hazardous Locations

Class I Division 2 ATEX

Standards and Certifications: Railway

EN 50121-4

Standards and Certifications: Traffic Control

NEMA TS2

Standards and Certifications: Freefall

IEC 60068-2-32

Standards and Certifications: Shock

IEC 60068-2-27

Standards and Certifications: Vibration

IEC 60068-2-6

Standards and Certifications: Industrial Cybersecurity

IEC 62443-4-2 Security Level 2

Standards and Certifications: Maritime

DNV IEC 60945 DNV IEC 61162-460 Edition 3.0 460-gateway, 460-forwarder and 460-switch DNV security profile 2, IACS UR E27 Rev.1

Standards and Certifications: Power Substation

IEEE 1613 IEC 61850-3 Edition 2.0

MTBF: Time

1,080,807 hrs

MTBF: Standards

Telcordia (Bellcore), GB

Warranty: Warranty Period

5 years

Switch Properties: IGMP Groups

1000

Switch Properties: Max. No. of VLANs

32

Switch Properties: VLAN ID Range

VID 1 to 4094

IPsec VPN: Authentication

MD5 and SHA (SHA-512) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate

IPsec VPN: Concurrent VPN Tunnels

Max. 250 IPsec VPN tunnels

IPsec VPN: Encryption

DES 3DES AES-128 AES-192 AES-256 AES-256-GCM

IPsec VPN: Protocols

IPsec L2TP (server) PPTP (client)

IPsec VPN: Throughput

Conditions: AES-256, SHA-256 Max. 100K packets per second / 800 Mbps (based on RFC 2544)
