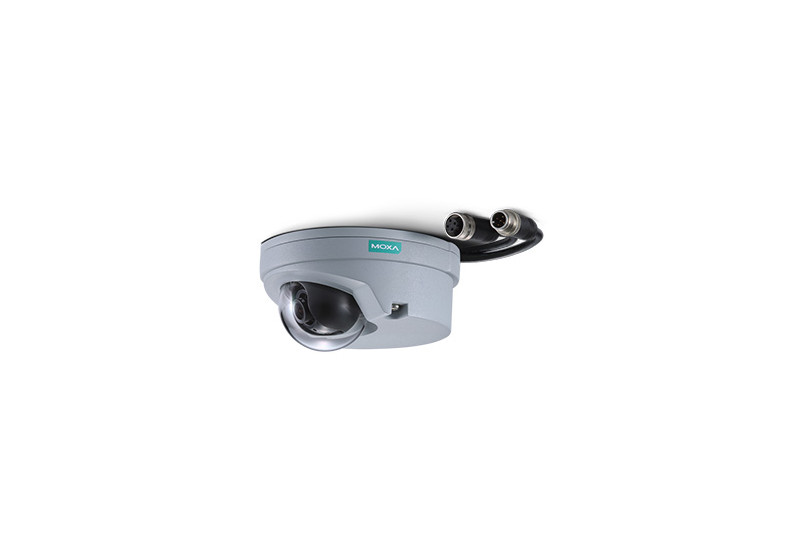

VPort P06HC-1V28M-CT

Ficha de datos

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

Input/Output Interface: Digital Input Channels

1

Input/Output Interface: Digital Inputs

+13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA

Input/Output Interface: Connector

DB9 male

Ethernet Software Features: Industrial Protocols

TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Power Parameters: Input Current

0.17 A @ 48 VDC

Power Parameters: No. of Power Inputs

1

Power Parameters: Source of Input Power

PoE (IEEE 802.3af)

Physical Characteristics: Housing

IP66 rain and dust protection Metal housing, PC dome cover IK8 vandal resistant protection
Metal

Physical Characteristics: Dimensions

60 x 60 x 74.6 mm (2.36 x 2.36 x 2.94 in)

Physical Characteristics: Weight

300 g (0.66 lb)
620 g (1.37 lb)

Physical Characteristics: Installation

Flush mounting

Physical Characteristics: Protection

PCB conformal coating

Environmental Limits: Operating Temperature

-40 to 55°C (-40 to 131°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Environmental Limits: Ingress Protection

IEC 60529, IP30 (provided screws are used to fill the camera housing screw holes)

Environmental Limits: Altitude

2000 m

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Signal: 2 kV IEC 61000-4-5 Surge: Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

UL 62368-1

Standards and Certifications: Railway

EN 50155 (complies with a portion of EN 50155 specifications)

Standards and Certifications: Freefall

IEC 60068-2-31

Standards and Certifications: Shock

IEC 60068-2-27, IEC 61373, EN 50155

Standards and Certifications: Vibration

IEC 60068-2-27, IEC 61373, EN 50155

Standards and Certifications: Railway Fire Protection

EN 45545-2

MTBF: Time

692,847 hrs

MTBF: Standards

IEC 62380

Warranty: Warranty Period

5 years

Memory: microSD Slot

SDXC

Security Functions: Password

User-level password protection

Security Functions: Filter

IP address

Security Functions: Encryption

HTTPS

Camera Characteristics: Sensor

1/2.7-in HD progressive scan CMOS

Camera Characteristics: Lens

f 2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°

Camera Characteristics: Minimum Illumination

Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

Camera Characteristics: Synchronization

Internal

Camera Characteristics: White Balance

ATW/AWB

Camera Characteristics: Electronic Shutter

Auto (1/30 to 1/25000 sec)

Camera Characteristics: S/N Ratio

Maximum 50 dB (AGC off; DNR on)

Camera Characteristics: DNR (digital noise reduction)

Built-in DNR

Camera Characteristics: WDR (wide dynamic range)

110 dB

Camera Characteristics: AGC (auto gain control)

2X, 4X, 8X, 16X, 32X, 64X

Camera Characteristics: Flickerless Control

Automatic, 50 Hz, 60 Hz modes

Camera Characteristics: Image Rotation

Flip, Mirror, and 180° rotation

Camera Characteristics: Image Setting

Manual tuning with saturation, sharpness, and contrast

Camera Characteristics: BLC (back light compensation)

High/Medium/Low

Video Interface: Video Compression

H.264 (ISO/IEC 14496-10) or MJPEG

Video Interface: Video Output

via Ethernet

Video Interface: Video Streams

Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients

Video Interface: Video Viewing

Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 10 simultaneous unicast connections, 50 multicast clients

Camera Software Development: Video Standards

ONVIF Profile S

Camera Alarm Software Features: Intelligent Video

Camera tampering detection

Camera Alarm Software Features: Video Motion Detection

3 independently configurable areas

Camera Alarm Software Features: Scheduling

Daily repeat timing schedule

Camera Alarm Software Features: Imaging

JPEG snapshots for pre/trigger/post alarm images

Camera Alarm Software Features: Custom Alarms

HTTP event servers for setting customized alarm actions

Camera Alarm Software Features: FTP Messaging

Automatic transfer of stored images via FTP as event-triggered actions

Software Requirements: Memory Size

1 GB

Software Requirements: Operating System

Windows 7 or above

Software Requirements: Browser

Internet Explorer 9.x or above

Software Requirements: Multimedia

DirectX 9.0C or above
