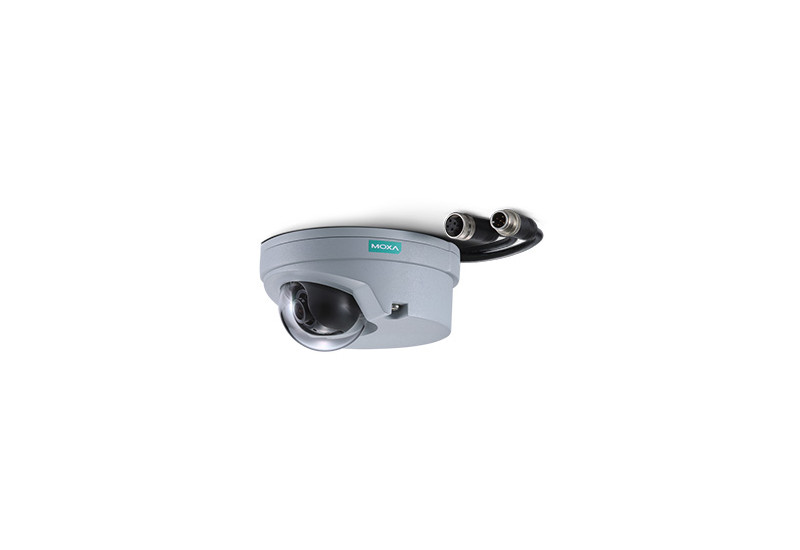

VPort P06-2L36M-T

Ficha de datos

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

Input/Output Interface: Digital Input Channels

1

Input/Output Interface: Digital Inputs

+13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA

Input/Output Interface: Connector

5-pin A-coded male M12 connector with 20 cm cable

Ethernet Software Features: Industrial Protocols

TCP/IP IPv4/IPv6 UDP HTTP RTP/RTSP ARP UPnP FTP TFTP NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPS SIP

Power Parameters: Input Current

0.17 A @ 48 VDC

Power Parameters: No. of Power Inputs

1

Physical Characteristics: Housing

IP66 rain and dust protection Metal housing, PC dome cover IK8 vandal resistant protection

Physical Characteristics: Dimensions

110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)

Physical Characteristics: Weight

620 g (1.37 lb)

Physical Characteristics: Installation

Panel mounting

Environmental Limits: Operating Temperature

-40 to 70°C (-40 to 158°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

UL 62368-1

Standards and Certifications: Railway

EN 50155 (complies with a portion of EN 50155 specifications)

Standards and Certifications: Freefall

IEC 60068-2-31

Standards and Certifications: Shock

IEC 60068-2-27, IEC 61373, EN 50155

Standards and Certifications: Vibration

IEC 60068-2-64, IEC 61373, EN 50155

MTBF: Time

1,075,216 hrs

MTBF: Standards

Telcordia SR332

Warranty: Warranty Period

5 years

Memory: microSD Slot

SDXC

Security Functions: Password

User-level password protection

Security Functions: Filter

IP address

Security Functions: Encryption

HTTPS SSH

Camera Characteristics: Sensor

1/3-in 1080P progressive scan CMOS
