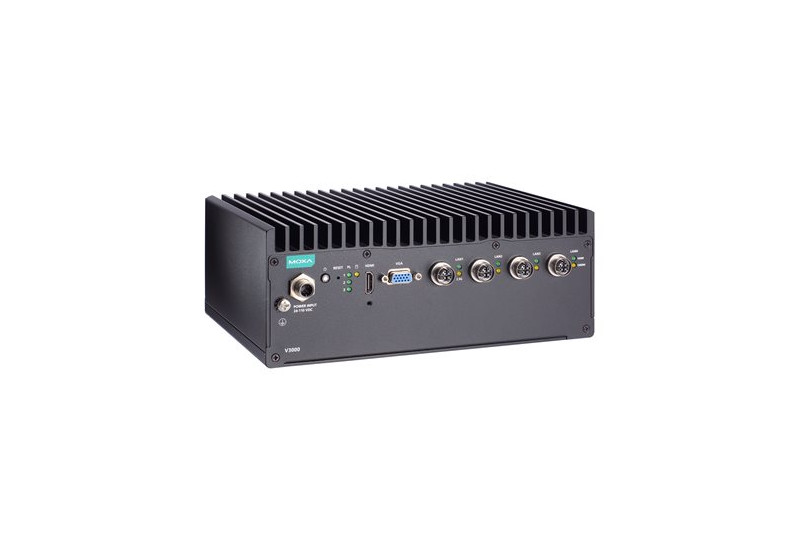

V3210-TL1-4L-T

Ficha de datos

Serial Interface: Connector

DB9 male

Serial Interface: Baudrate

50 bps to 115.2 kbps

Serial Interface: Data Bits

5, 6, 7, 8

Serial Interface: Parity

None, Even, Odd, Space, Mark

Serial Interface: Stop Bits

1, 1.5, 2

Serial Interface: Flow Control

RTS/CTS, XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only)

Serial Interface: Isolation

2 kV

Serial Interface: ESD

Contact: 6 kV; Air: 8 kV (level 3)

Serial Signals: RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Signals: RS-422

Tx+, Tx-, Rx+, Rx-, GND

Serial Signals: RS-485-2w

Data+, Data-, GND

Serial Signals: RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

LED Indicators: System

Power x 1 Storage x 1

LED Indicators: Serial

2 per port (Tx, Rx)

LED Indicators: LAN

2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps) 1 per LAN bypass pair (LAN7 - LAN8)

LED Indicators: User Programmable

3

Power Parameters: Input Voltage

24 to 110 VDC

Power Parameters: Power Connector

M12 A-coded male connector

Power Parameters: Power Consumption

100 W (max.)

Physical Characteristics: Housing

Aluminum

Physical Characteristics: IP Rating

IP30

Physical Characteristics: Dimensions (without ears)

250 x 96.7 x 180 mm (9.84 x 3.80 x 7.09 in)

Physical Characteristics: Weight

Product Only: 3.86 kg (8.51 lb) Product With Package: 5.10 kg (11.24 lb)

Physical Characteristics: Installation

Wall mounting

Physical Characteristics: Protection

PCB conformal coating Available on request

Environmental Limits: Operating Temperature

-40 to 70°C (-40 to 158°F)

Environmental Limits: Storage Temperature

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMC

EN 55032/35

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Standards and Certifications: Safety

EN 62368-1 IEC 62368-1 UL 62368-1

Standards and Certifications: Railway

EN 50121-4 EN 50121-3-2 EN 50155:2017

Standards and Certifications: Shock

IEC 60068-2-27, IEC 61373

Standards and Certifications: Vibration

IEC 60068-2-64, IEC 61373

Standards and Certifications: Railway Fire Protection

EN 45545-2:2020

MTBF: Time

382,624 hrs

MTBF: Standards

Telcordia (Bellcore), GB

Warranty: Warranty Period

3 years

Digital Outputs: Connector

Screw-fastened Euroblock terminal

Digital Outputs: Current Rating

200 mA per channel

Digital Outputs: I/O Type

Sink

Digital Outputs: Voltage

0 to 30 VDC

Digital Outputs: Isolation

3k VDC

Digital Inputs: Connector

Screw-fastened Euroblock terminal

Digital Inputs: Isolation

3k VDC

Digital Inputs: Sensor Type

Dry contact Wet contact (NPN)

Digital Inputs: Dry Contact

Logic 0: Close to GND Logic 1: Open

Digital Inputs: Wet Contact (COM to DI)

Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC

Declaration: Green Product

RoHS, CRoHS, WEEE

Computer: CPU

Intel Celeron 6305E processor (2C/2T, 4M cache, 1.8 GHz)

Computer: System Memory Slot

SODIMM DDR4 slots x 2 (64 GB max)

Computer: System Memory Pre-installed

16 GB DDR4

Computer: Storage Slot

2.5-inch SSD slots x 2 M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled)

Computer: Supported OS

Windows 10 IoT Enterprise LTSC 2021 LTSC 64-bit Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL Linux drivers supported: Debian 12 Ubuntu 22.04 LTS (HWE)

Computer: Graphics Controller

Intel UHD Graphics

Computer Interface: Ethernet Ports

Default: 4 ports (2.5 GbE x 1 and GbE x 3), can go up to 8 ports Auto-sensing 1000/2500 Mbps x 1 Auto-sensing 10/100/1000 Mbps x up to 7

Computer Interface: Serial Ports

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

Computer Interface: Digital Input

DIs x 2

Computer Interface: Digital Output

DOs x 2

Computer Interface: USB 3.0

USB 3.0 hosts x 2, type-A connectors

Computer Interface: Video Output

VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)

Computer Interface: Wi-Fi Antenna Connector

QMA x 8 (optional with accessory kit)

Computer Interface: Expansion Slots

M.2 B key 3052/3050 slots x 2 M.2 E key slots x 1 (for Wi-Fi 6) mPCIe slots x 1 (for LTE with 2 Micro SIMs, Wi-Fi 5, or I/O expansion)

Computer Interface: SIM Format

Micro

Computer Interface: TPM

TPM v2.0

Computer Interface: Number of SIMs

6
