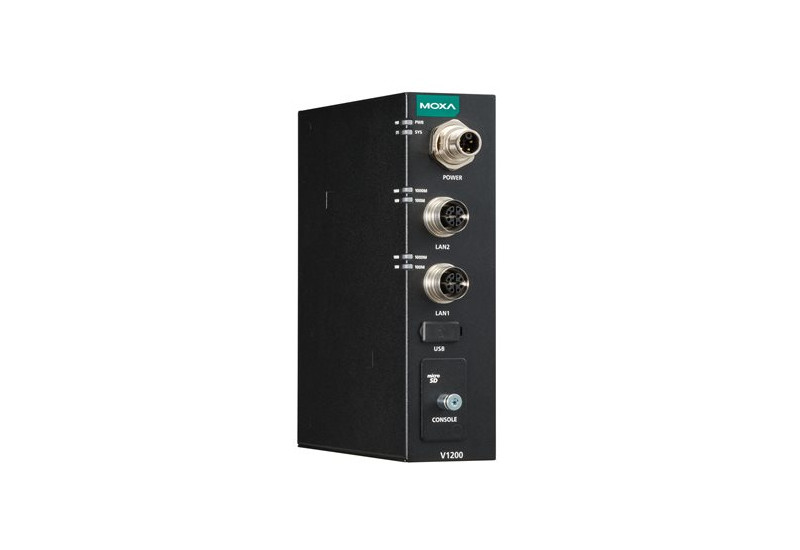

V1202-CT-T

Ficha de datos

Serial Interface: No. of Ports

V1222-CT-T, V1222-W-CT-T: 2

Serial Interface: Baudrate

50 bps to 115.20 kbps

Serial Interface: Data Bits

5, 6, 7, 8

Serial Interface: Parity

None, Even, Odd, Space, Mark

Serial Interface: Stop Bits

1, 1.5, 2

Serial Interface: Flow Control

RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)

Serial Interface: Isolation

N/A

Serial Signals: RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Signals: RS-422

Tx+, Tx-, Rx+, Rx-, GND

Serial Signals: RS-485-2w

Data+, Data-, GND

Serial Signals: RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

LED Indicators: System

Power x 1 System x 1 SIM card indicator x 1

LED Indicators: Serial

V1222-CT-T, V1222-W-CT-T: 1 LED per port for 2 serial ports

LED Indicators: LAN

2 ports, 1 per port (10/100/1000 Mbps)

LED Indicators: Wireless Signal Strength

Cellular x 3 Wi-Fi x 3

Power Parameters: Input Voltage

24 to 110 VDC

Power Parameters: Input Current

V1202-CT-T: 0.4 A @ 24 VDC, 0.1A @ 110 VDC V1222-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC V1222-W-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC

Power Parameters: Power Connector

M12 K-code power connector

Power Parameters: Reverse Polarity Protection

Supported

Power Parameters: No. of Power Inputs

1

Power Parameters: Power Consumption

V1202-CT-T: 7.4 W at 95% CPU loading V1222-W-CT-T: 13.7 W (with 5G & Wi-Fi) at 95% CPU loading

Physical Characteristics: Housing

Metal SECC

Physical Characteristics: IP Rating

IP40

Physical Characteristics: Dimensions

V1202-CT-T: 150 x 120 x 41 mm (5.90 x 4.72 x 1.61 in) V1222-CT-T / V1222-W-CT-T: 150 x 120 x 50 mm (5.90 x 4.72 x 1.97 in)

Physical Characteristics: Weight

Product only (without mounting ears) V1202-CT-T: 665 g (1.47 lb) V1222-CT-T : 935 g (2.06 lb) V1222-W-CT-T : 1,005 g (2.22 lb)

Physical Characteristics: Installation

Wall mounting (standard) Desk mounting (with optional kit) DIN-rail mounting (with optional kit)

Environmental Limits: Operating Temperature

With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)

Environmental Limits: Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Environmental Limits: Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications: EMC

EN 55032/35 EN 61000-6-2/-6-4

Standards and Certifications: EMI

CISPR 32, FCC Part 15B Class A

Standards and Certifications: EMS

IEC 61000-4-2 (ESD): 6 kV contacto, 8 kV aire; IEC 61000-4-3 (RS): 20 V/m (80 MHz–1 GHz); IEC 61000-4-4 (EFT): 2 kV potencia/señal; IEC 61000-4-5 (Surge): 2 kV L-L/L-G; IEC 61000-4-6 (CS): 10 V (150 kHz–80 MHz); IEC 61000-4-8 (PFMF).

Standards and Certifications: Safety

IEC 62368-1 UL 62368-1

Standards and Certifications: Railway

EN 50155: 2021 EN 50121-4

Standards and Certifications: Shock

IEC 60068-2-27 IEC 61373 EN 50155

Standards and Certifications: Vibration

IEC 60068-2-64 IEC 61373 EN 50155

Standards and Certifications: Railway Fire Protection

EN 45545-2 NFPA130

Standards and Certifications: Wireless

EN 301 489-1/-17/-19/-52 EN 62311 EN 300 328 (WLAN 2.4G) EN 301 893 (WLAN 5G) EN 303 687 (WLAN 6 GHz) EN 301 908-1 EN 303 413 FCC UKCA

Standards and Certifications: International Approval

FCC CE UKCA RCM (V1202-CT-T and V1222-CT-T)

Standards and Certifications: Green Product

RoHS, CRoHS, WEEE

MTBF: Time

V1202-CT-T: 2,755,789 hrs V1222-CT-T: 1,430,568 hrs V1222-W-CT-T: 1,324,329 hrs

MTBF: Standards

Telcordia Standard SR332, GB

Warranty: Warranty Period

5 years

WLAN Interface: WLAN Standards

802.11a/b/g/n/ac/ax

WLAN Interface: Frequency Band

2.4 GHz / 6 GHz 2.4 GHz / 5 GHz

Computer: CPU

Arm Cortex-A53 quad-core 1.6 GHz

Computer: Storage Pre-installed

16 GB eMMC

Computer: Expansion Slots

microSD socket x 1

Computer: Supported OS

Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL

Computer: DRAM

4 GB LPDDR4

Computer Interface: Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

Computer Interface: Serial Ports

V1222-CT-T, V1222-W-CT-T: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

Computer Interface: USB 2.0

USB 2.0 hosts x 1, type-A connectors

Computer Interface: Wi-Fi Antenna Connector

V1222-CT-T, V1222-W-CT-T: QMA x 2

Computer Interface: Expansion Slots

M.2 E-key slot x1 (for Wi-Fi 6) M.2 B-key slot x1 (for 5G) mPCIe slot x1 (for LTE)

Computer Interface: SIM Format

V1222-CT-T, V1222-W-CT-T: Nano

Computer Interface: TPM

TPM v2.0

Computer Interface: Number of SIMs

V1222-CT-T: 2 for 5G or 2 for LTE V1222-W-CT-T: 2 for 5G

Computer Interface: Cellular Antenna Connector

V1222-CT-T, V1222-W-CT-T: QMA x 4

Computer Interface: GPS Antenna Connector

V1222-CT-T, V1222-W-CT-T: QMA x 1

Computer Interface: Buttons

Reset button

Computer Interface: Console Port

RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)

Cellular Interface: LTE Bands (LTE module)

1 (2100 MHz), 2 (1900 MHz), 3 (1800 MHz), 4 (1700 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 9 (1800 MHz), 12/13/14/28 (700 MHz), 18/19/26 (850 MHz), 20 (800 MHz), 25 (1900 MHz)

Cellular Interface: 5G NR Bands (5G module)

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79

Cellular Interface: UMTS/HSPA Bands (LTE module)

1 (2100 MHz), 2 (1900 MHz), 4 (1700 MHz), 5 (850 MHz), 6 (850 MHz), 8 (900 MHz), 19 (850 MHz)

Cellular Interface: UMTS/HSPA Bands (5G module)

1 (2100 MHz), 2 (1900 MHz), 4 (1700 MHz), 5 (850 MHz), 6 (850 MHz), 8 (900 MHz), 19 (850 MHz)

Cellular Interface: LTE Bands (5G module)

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Cellular Interface: 2G Bands (LTE module)

Band 2 (PCS_1900), Band 3 (DCS_1800), Band 5 (GSM_850), Band 8 (EGSM_900)

Cellular Interface: Cables

5G module: IPEX MHF4 to QMA cables x 5 (4 for data transition, 1 for GNSS) LTE Module: IPEX MHF to QMA cables x 3 (2 for data transition, 1 for GNSS)

GPS Interface: Frequency Range

5G: GNSS 1559–1606 MHz; GPS, GLONASS, BeiDou, Galileo. LTE: GNSS 1559–1606 MHz; GPS, GLONASS, BeiDou, Galileo, QZSS.

GPS Interface: Antenna Types Supported

5G: Antena activa (7.5–26 dB o 1.5–7.5 dB, configurable por AT); antena pasiva (1.5–3 dBi). LTE: Antena activa externa con pre-filtro GNSS (14–17 dBi).

GPS Interface: Time to First Fix (TTFF)

5G module: Hot start: 1 s Warm start: 27 s Cold start: 28 s Open Sky, mean TTFF LTE module: Hot start: 1.1s Warm start: 22.1s Cold start: 29.9s GPS + GLONASS simulator test

GPS Interface: Sensitivity

5G module: Cold starts: -146 dBm Tracking: -161 dBm Acquisition: -148 dBm LTE module: Cold starts: -145 dBm Tracking: -160 dBm Acquisition: -147 dBm

GPS Interface: Update Rate

Minimum 1 Hz

Reliability: Automatic Reboot Trigger

External RTC (real-time clock)

Reliability: Alert Tools

External WDT (watchdog timer)
